RAIN TURBINA Vision Irrigation Controller Water Energy Charging Device

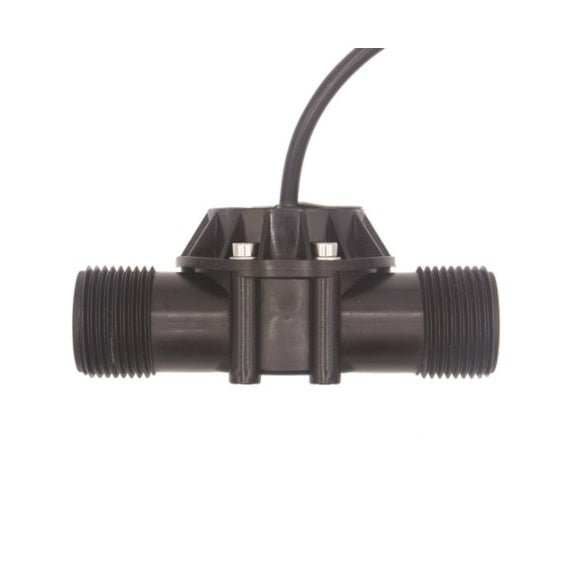

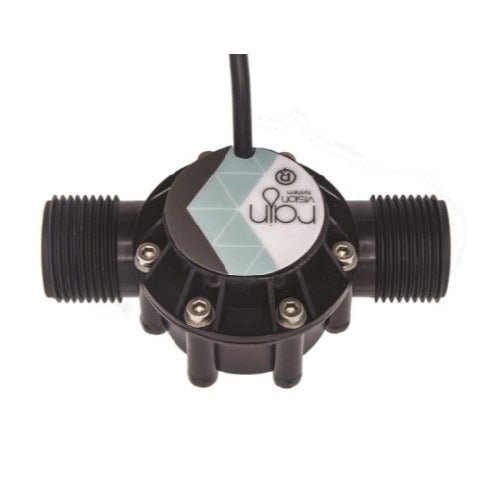

RAIN TURBINA Vision Irrigation Controller Water Energy Charging Device is Rain's water turbine that can be used with all Rechargeable devices, By connecting Irrigation Controller Water Energy Charging Device to a compatible device, it keeps the lithium batteries of the Irrigation Controller charged through water energy, making the irrigation system self-sufficient in energy.

Technical characteristics

• Battery-powered Vision ECUs
• IP68 charging connector
• 5 meters of cable
• IP68 charging output compatible with vision and rechargeable devices
• Inlet thread: 1 "M and Outlet thread: 1 "M
• Maximum voltage generated: 6.8 Vdc
• Maximum generated power: 2 W
• PA6 30% fiberglass body
• Maximum flow rate: 70 l / min
• Minimum working pressure: 1 bar
• Maximum working pressure: 6 bar
• Operating temperature: 4-70 ° C

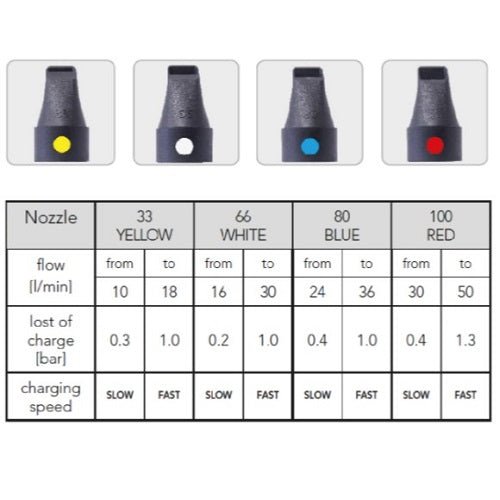

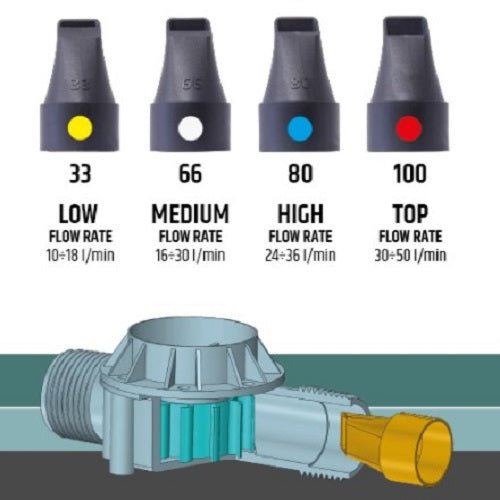

4 different nozzles to fit any irrigation system

• 33% - Low flow rate: 10 to 18 l / min (recommended)
• 66% - Average flow rate: from 16 to 30 l / min (recommended)
• 80% - High flow rate: 24 to 36 l / min (recommended)
• 100% - Maximum flow rate: 30 to 50 l / min (recommended)
• Diameter: 5 mm / Length: 5m
• Material: PA6 30% fiberglass
• Conductors: 2x0.5 mm2
• 2-pole IP68 female quick connector (max diameter: 18 mm)
