RAIN S075 Pop up Rotor Irrigation Sprinklers

Is designed for basic residential and light commercial application and is ideal for low flow applications.
RAIN S075 Pop up Rotor Irrigation Sprinklers rotates counter clockwise from fixed right start position and has an easy top adjustment procedure.
RAIN S075 Pop up Rotor Irrigation Sprinklers has arc range that is from 40° to 360° provides a full range of adjustment.
RAIN S075 Pop up Rotor Irrigation Sprinklers is capable of covering an area from 6,7 m to 15,5 m and is supplied with a wide selection of nozzles (8 standard with 25° nozzle trajectory and 4 low angle with 11° nozzle trajectory) in order to offer maximum flexibility to irrigation system design. Its special wiper seal reduces leaks caused by debris trapped under seal.

Product Features

• Right position start – rotor rotates counterclockwise from fixed right start position
• Rubber cover – seals out dirt and increases product durability
• Wide selection of nozzles – provides flexibility in system design
• Optional check valve - prevent low head drainage

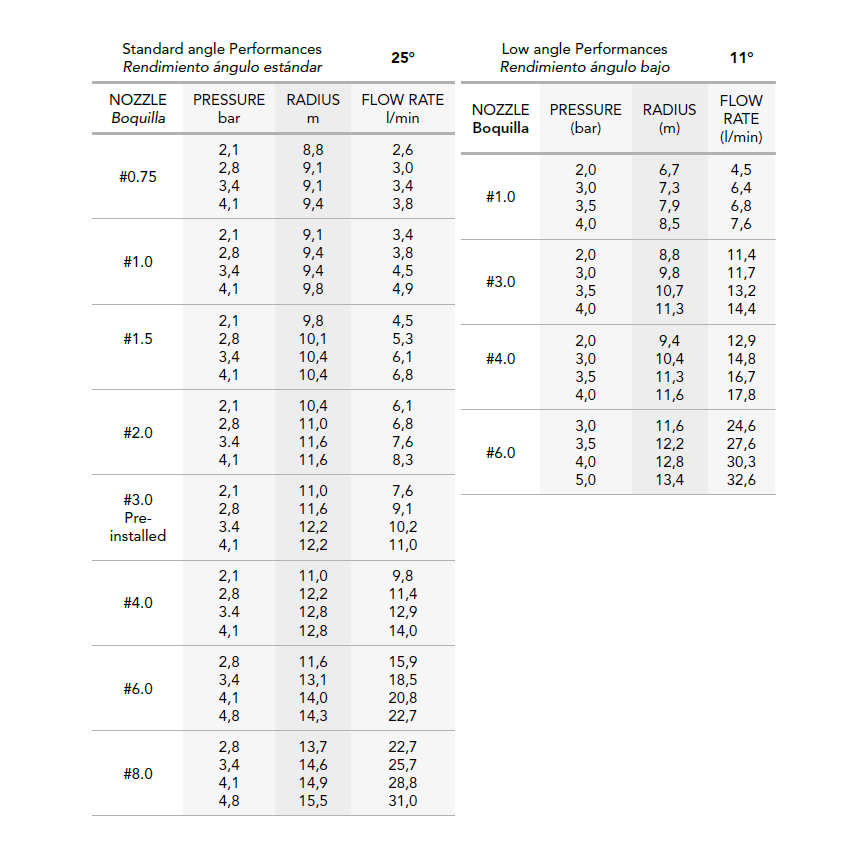

Product Technical characteristics

• Inlet: 20mm / 3/4”
• Radius: 6,7 to 13.4 m for low angle nozzles
• Radius: 8.8 to 15.5 m for standard angle nozzles
• Operating pressure: 2,0 - 5,0 Bar
• RAIN S075 Pop up Rotor Irrigation Sprinkler has Flow Range: 2,6 - 32,6 l/m
• Arc Adjustment Range: 40° to 360°
• RAIN S075 Pop up Rotor Irrigation Sprinkler has 8 standard and 4 Low Angle Nozzle Included
• RAIN S075 Pop up Rotor Irrigation Sprinkler has Riser Height: 10,2 cm
• Low Angle Nozzle Trajectory: 11°
• Nozzle Trajectory: 25°
• Recommended Spacing:7,6 to 13,7 m
• Overall Height: 18,7 cm
• Precipitation Rate: 0,3 to 2,9 cm per Hour (Depending on Spacing and nozzle Used)

S075 Datasheet
