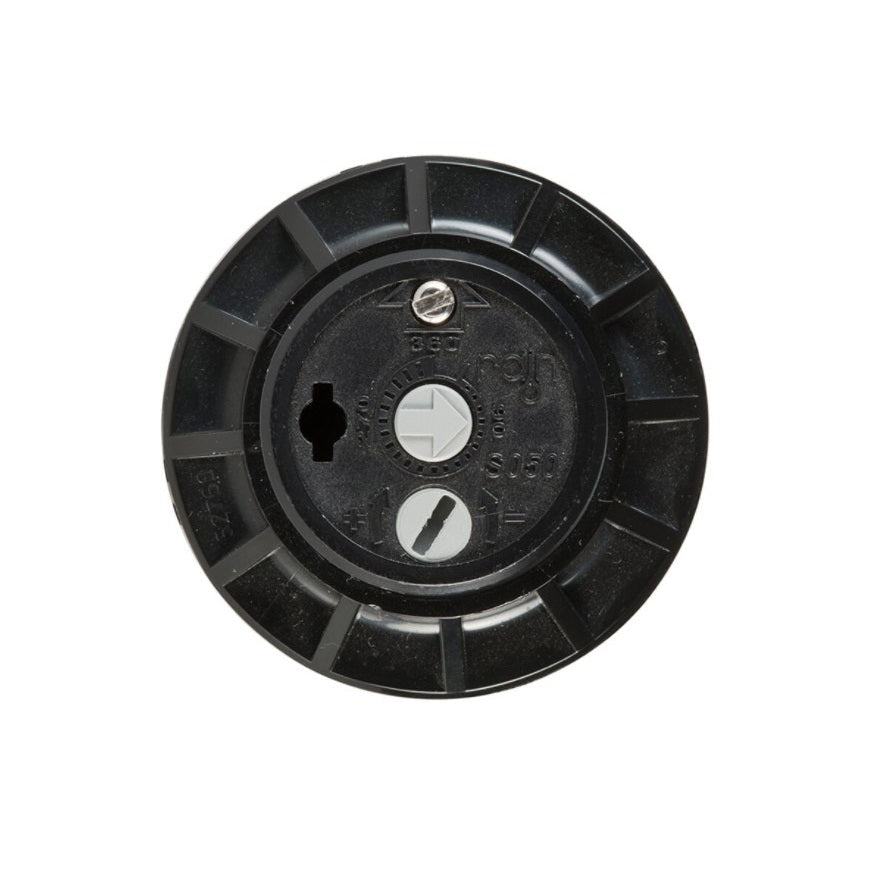

Rain S050 S Rotor Irrigation Sprinkler is Perfect for irrigation of small areas, Irrigation Sprinkler offers great flexibility in the design of the system thanks to the 5 interchangeable nozzles. The S050 S Irrigation Sprinkler is able to cover surfaces from 5.5 to 10.1 m with limited water consumption (from 2.8 to 11.4 l / min) to optimize the number of sectors of the irrigation system.
Product Features
- Left position start – rotor rotates clockwise from fixed left start position.
- Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment.
- Time proven patented reversing mechanism – Assures continuous reverse and return.
- Ratcheting Riser–Allows for easy pattern alignment by turning the riser.
- Wide selection of nozzles – provides flexibility in system design.
- Optional check valve – prevents low head drainage.
Product Technical characteristics
- 1/2 "/ 15mm connection
- Radius from 5.5 m to 10.1 m
- Operating pressure min 2.07 bar max 3.45 bar

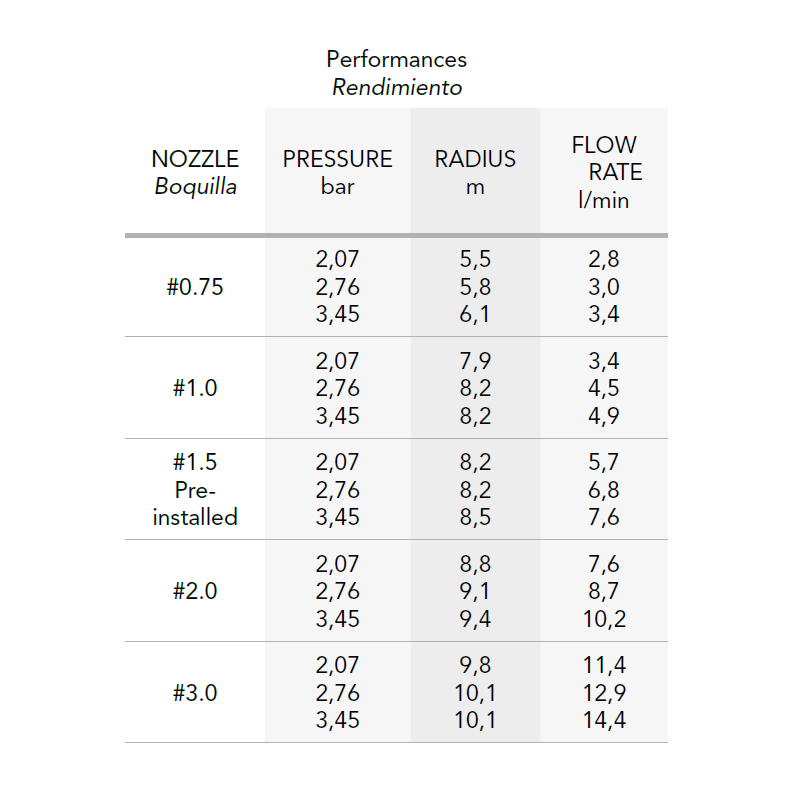

- Nozzle flow rates from 2.8 l / min to 12.5 l / min
- Irrigation Sprinkler has Adjustable Arc from 40 ° to 360 °
- 5 interchangeable nozzles
- Trajectory angle 26 °
- Pre-assembled nozzle 1.5
- Start to the right and rotation counterclockwise
- Rubber lid
- Optional anti-drain valve
- Irrigation Sprinkler Riser Height 10.2 cm
- Irrigation Sprinkler Body height 15.2 cm
- IN BOX: 25 Sprinklers
