This Irrigation Pop up Sprinklers are distinguished by the robust design of the body and the cap.The co-molded gasket and the retraction spring allow the sprinkler to return in all working conditions. The co-molded gasket guarantees correct functioning and a long life of the product. Co-molded gasket: Ensures full, leak-free pop-up operation even in low pressure situations. The cartridge design of Pop up Sprinkler allows for easy removal and cleaning.
This Pop up Sprinklers Treated with UV inhibitors for a long life. The gasket material has been carefully selected to reduce degradation
Technical characteristics
- Static Pop up Sprinklers
- Without Nozzle

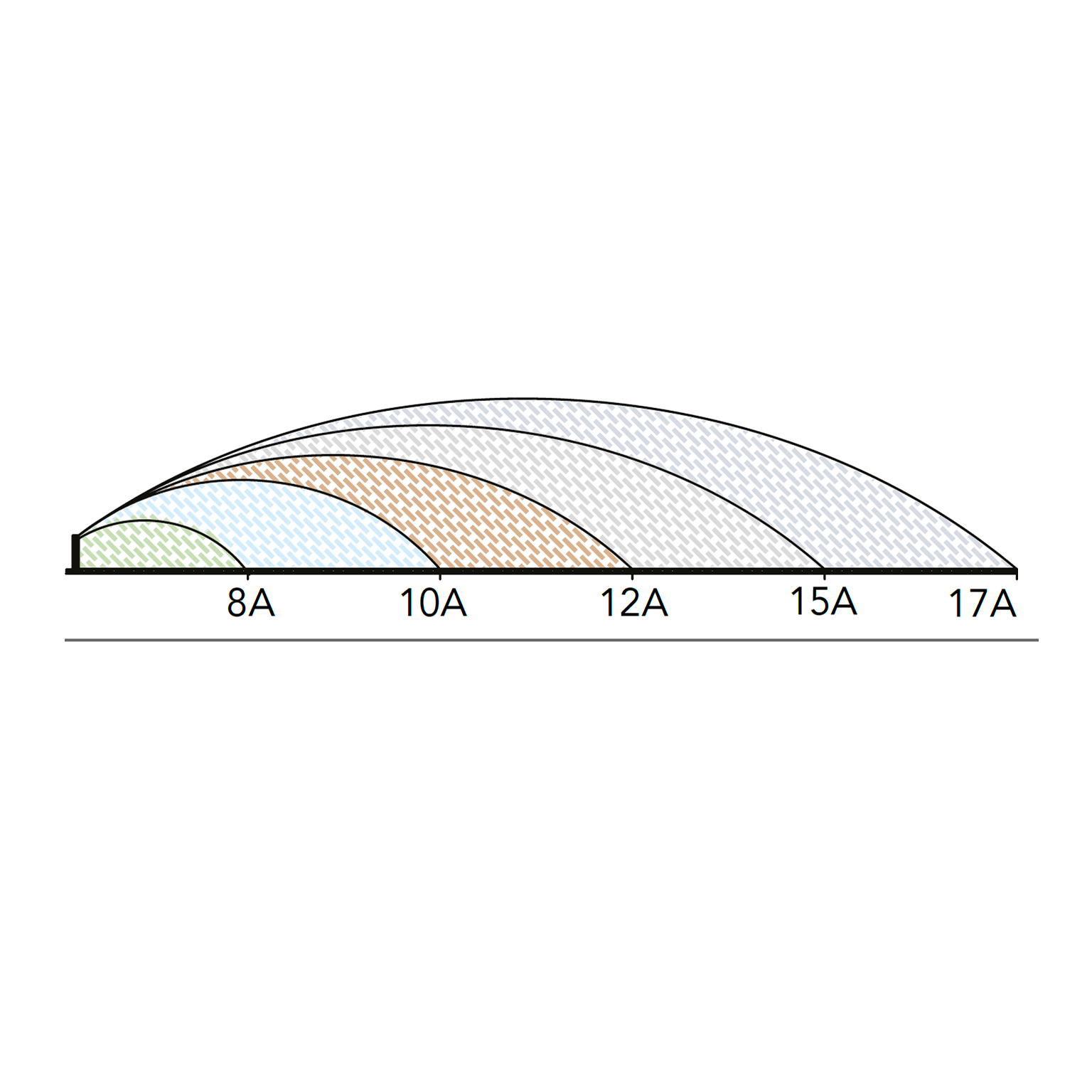

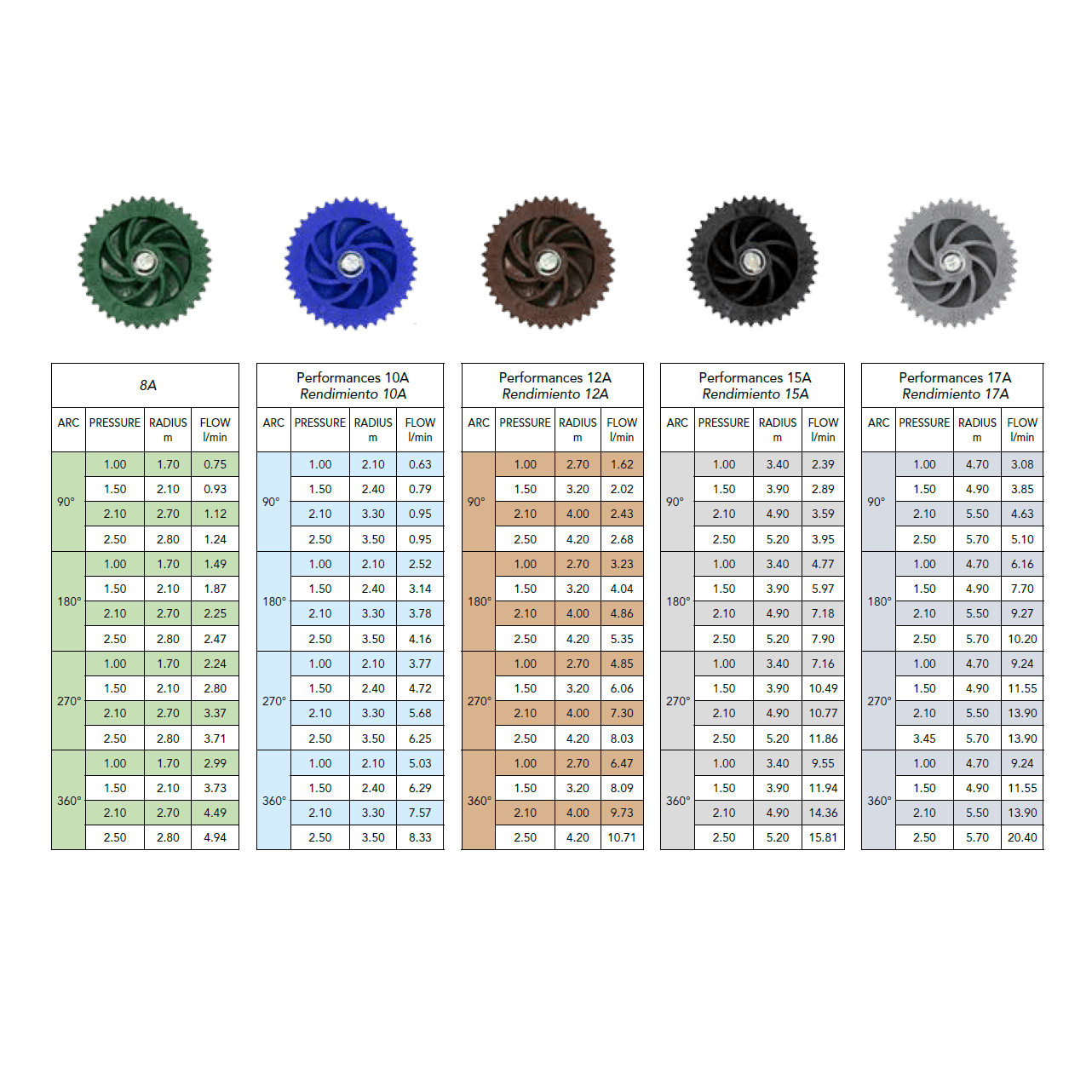

- Adjustable Nozzle Range: 8A 2.8m; 10A 3.5m; 12A 4.2m; 15A 5.2m; 17A 5.7m ( Supplied Seperately )
- Pop up Sprinkler Suitable for all female Nozzles heads
- Co-Molded Wiper Seal: Ensures a leak free, full pop-up operation even under low-pressure situations. Cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal material was carefully selected to reduce degradation and stick-ups.
- Return spring that allows the sprinkler to be closed in any condition
- Ratcheting Riser–Allows for easy pattern alignment by turning the riser
- The Pop up Sprinkler allows you to adjust the orientation of the jet by rotating the riser
- Optional check valve – prevents low head drainage
- Riser Height: 10 cm
- Adjustable arc: 0 ° - 360 °
- Operating pressure: 1.4 - 4.8 bar
- Inlet: 1/2" Female Thread
S030 DatasheetCompatible with:
